A Deep Dive into Rail Wheel Types

Introduction:Railway wheels play a pivotal role in the efficient and safe operation of trains. Over the years, advancements in wheel technology have led to the development of various types, each designed to meet specific requirements in terms of strength, durability, and performance.

1. Solid Rolled Steel Wheels:

One of the foundational designs is the solid rolled steel wheel. Renowned for its high strength and excellent toughness, this type of wheel is well-suited for heavy loads and high-speed applications, ensuring a prolonged lifespan. Notably, the wheel rim is weldable, and the wheel tread is adjustable, allowing for convenient maintenance.

2. Innovative Cast Steel Wheels

:The emergence of new cast steel wheels introduces a variety of designs, such as straight belly plate (a) and slanted belly plate (b). Each component of these wheels is meticulously engineered:

•


  Wheel Rim (1)：The inner side of the wheel rim features a radial convexity.

•


  Tread (2)：This is the part of the wheel that comes into contact with the rail.

•


  Wheel Flange (3)：Radial thickness of the tread.

• Spokes(4):Curved and elastic, providing flexibility.


• Wheel Collar (5):Facilitates the coupling with the axle.

• Hub Hole (6):Connects with the wheel seat.

•


  Spoke Hole (7):Used for machining, positioning, and hoisting.




3. LM Type Wear-Resistant Tread:

The LM type tread boasts several advantages:

• Significant reduction (50%) in wheel rim thickness wear, optimizing the outer shape to match the rail.

• Decreased circumferential wear (20%), lowering wheel-rail contact stress by 30%.

• Improved rail wear and working conditions.

• Enhanced curve negotiation performance for vehicles.

• Various settings for:

• Ease of curve negotiation by reducing wheel sliding on the track (L2 greater than L1).

• Automatic centering ability.

• Smooth passage through turnouts.

• Uniform wear along the width of the tread.

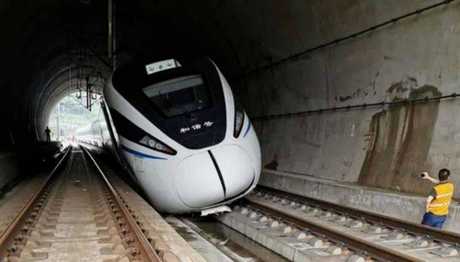

• Prevention of wheel derailment.

4. Wheel Rim and Tread Shape Considerations:

4.1 Wheel Rim Shape

:Various shapes, such as cone-type (TB type), wear-resistant type (LM type), and high-speed wear-resistant type (HLM type), cater to specific needs.

   4.2 Wheel Rim and Tread Shape Classifications:

• Facilitate curve negotiation.

• Enable automatic centering.

• Ensure smooth passage through turnouts.

• Promote uniform wear of the tread.

• Prevent wheel derailment.




4.3 Tread Inclination:

The inclination of the wheel tread serves multiple purposes, including facilitating curve negotiation, automatic centering, smooth turnout passage, uniform tread wear, and prevention of wheel derailment.

     4.4 Requirements for Tread Shape:

• Nominal Diameter: The diameter at 70mm from the inner side of the wheel rim, creating a rolling circle.

• Advantages of a smaller wheel diameter: Lowering the vehicle's center of gravity, reducing spring undercarriage mass, and shortening the fixed axle distance. However, drawbacks include increased resistance, elevated wheel-rail contact stress, and faster tread wear.

Conclusion:

In adherence to Chinese standard wheel diameters, innovations in railway wheel technology continue to revolutionize train operations. These advancements ensure not only improved performance and safety but also contribute to the longevity and reliability of railway systems globally.
